LOCKGRID™
Surface Solutions

LOCKGRID™2000
LOCKGRID™Ontop
2" Soil Retention
1" Soil Retention
ontop

LOCKGRID™ Elastic
LOCKGRID™ Camp
2" Paddock
Event Flooring
Elastic
Camp
         * Shown with Ramps and coners


Features
+ Ecological and safe for the environment
+ No soil sealing
+ Preventing soil compression and grass damage
+ Patented expandable S-joints guarantee flexibility and stability at temperature fluctuations
+ Load capacity of up to 150 metric tons per square meter
+ Interlocking system prevents horizontal and vertical movement
+ Made of 100% recycled plastics (HDPE)
+ Easy to manipulate; Lightweight 9 kg/m2
+ Rapidly installed; about 100m2/hour per person

MODEL
DIMENSIONS
In. (mm)
WEIGHT
kg
m²/piece
OPENINGS
In. (mm)
CAPACITY CHARGE
Tons/m2
Color
L
W
H

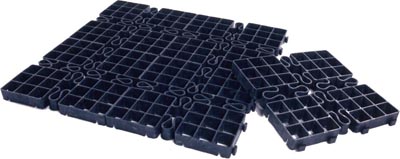

LOCKGRID™ 2000
 2” Grid for Soil Retention
39
(1000)
39
(1000)
2
(50)
7.2
2.5 x 2.5
(64 x 64)
150
BLACK

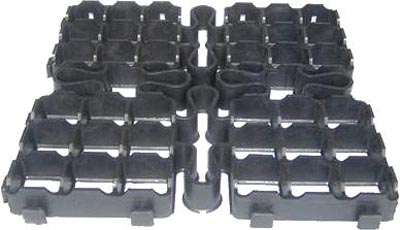

 LOCKGRID ™ ELASTIC
 2” Grid for Paddock
39
(1000)
39
(1000)
2
(50)
6.8
2.5 x 2.5
(64 x 64)
80
BLACK

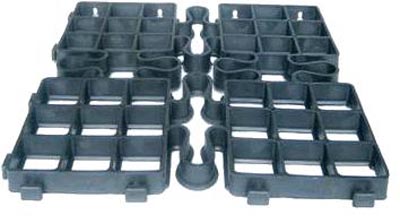

 LOCKGRID ™ ONTOP
 1” Grid for Soil Retention
39
(1000)
39
(1000)
1
(25)
4.4
2.5 x 2.5
(64 x 64)
80
BLACK
 LOCKGRID ™ CAMP
 2” Event Flooring
39
(1000)
39
(1000)
2
(50)
8.8
N/A
80
BLACK
 LOCKGRID ™ RAMPS
 R - U - L  - O Side Ramps
20
(500)
6
(153)
2
(50)
0.5
N/A
N/A
BLACK
 LOCKGRID ™ CORNER
 1 - 2 - 3  - 4 Corners
6
(153)
6
(153)
2
(50)
0.1
N/A
N/A
BLACK
